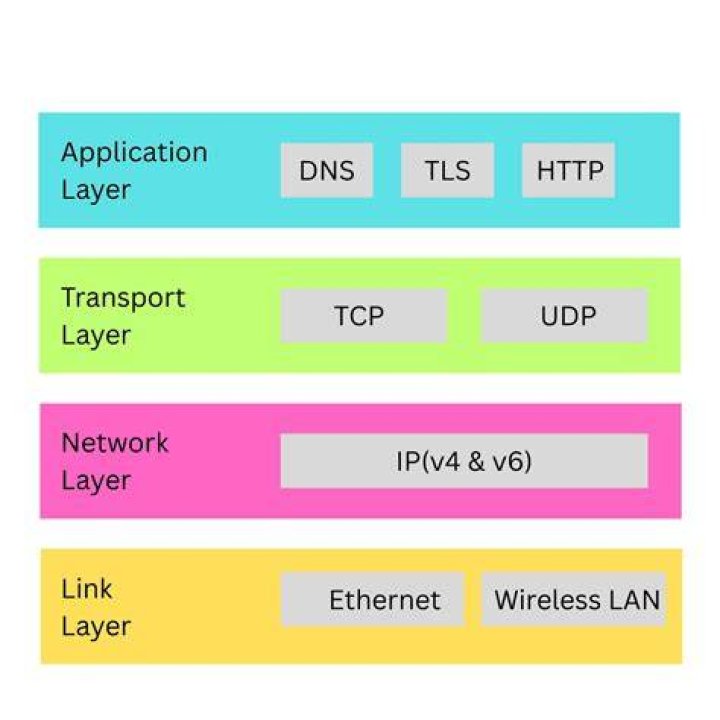

In the OSI model the network layer is layer 3; in the TCP/IP model the Internet layer is layer 2.

Is Internet Layer 2 or Layer 3?

Layer 2 of the OSI model is known as the data link layer. The Layer 2 protocol you’re likely most familiar with is Ethernet. … Layer 3 is the network layer and its protocol is the Internet Protocol or IP.

What are Layer 3 features?

• Comes with 24 Ethernet ports, but no WAN interface.
• Acts as a switch to connect devices within the same subnet.
• Switching algorithm is simple and is the same for most routed protocols.
• Performs on two OSI layers — layer 2 and layer 3.

What is Layer 3 connection?

Layer 3 provides switching and routing technologies, creating logical paths, known as virtual circuits, for transmitting data from node to node. Routing and forwarding are functions of this layer, as well as addressing, internetworking, error handling, congestion control and packet sequencing.

Can a layer 3 switch replace a router?

All in all, it is not recommended to replace a router with layer 3 switch, but you can apply them in the same network at the same time. … However, those switches are costly, and most layer 3 switches just have Ethernet ports. In this way, a dedicated router is cost-effective than a layer 3 switch.

What is a layer 3 router?

A layer 3 switch is both a switch and a router: it can be regarded as a router with multiple Ethernet ports and with switching function. layer 3 switch enable packets switching by inspecting both their IP addresses and their MAC addresses.

Is layer 3 an IP?

Network layer, layer 3. The most significant protocol at layer 3 (also called the network layer) is the Internet Protocol, or IP. IP is the standard for routing packets across interconnected networks–hence, the name internet.

Is UniFi Switch Layer 3?

The UniFi Switch Pro 24 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server.

What is the difference between layer 3 switch and router?

Hardware/Software decision making – The key difference between Layer 3 switch and router lies in the hardware technology used to making forwarding decision. Layer 3 switch uses ASICs for forwarding decisions. Conversely, the router makes forwarding decisions based on hierarchical Layer-3 addresses.

What does a multilayer switch do?

A multilayer switch is a network device that has the ability to operate at higher layers of the OSI reference model, unlike the Data Link Layer (DLL) traditionally used by switches. A multilayer switch can perform the functions of a switch as well as that of a router at incredibly fast speeds.

Article first time published on

Which layer device is router?

A router is considered a layer-3 device because its primary forwarding decision is based on the information in the layer-3 IP packet, specifically the destination IP address.

Do Layer 3 addresses cross the router to other networks?

Traffic being switched by MAC address is isolated within the LAN those devices are using. When you need traffic to cross between LANs (or VLANs) is when we need a Layer 3 device. … Since a router holds information about multiple networks (LAN WAN VLAN) it is also able to pass traffic along between these networks.

What is a layer 3 network switch?

Simply to say, a layer 3 switch is a network switch with some router functions. The most important purpose of the layer 3 switch is to speed up the data exchange within a large LAN. The routing function is also used for this purpose. It can accomplish one route and multiple packet forwarding processes.

What is Layer 2 and layer 3 network?

Generally speaking, Layer 2 is a broadcast Media Access Control (MAC) MAC level network, while Layer 3 is a segmented routing over internet protocol (IP) network.

Can a layer 3 switch Do BGP?

The Light Layer 3 switch allows for VLAN creation, VLAN routing, and IP routing based off static routes, but it cannot dynamically route packets based on dynamic metrics like load and cost. Simply put, a Layer 3 switch is similar to a router with the exception of (BGP) Border Gateway Protocol.

Are Layer 3 switches faster?

Within the LAN environment, a Layer 3 switch is usually faster than a router because it is built on switching hardware. … In fact, many of Cisco’s Layer 3 switches are actually routers that operate faster because they are built on “switching” hardware with customized chips inside the box.

Do I need Layer 3 switch at home?

Generally if you do not know why you need a layer3 switch you do not need one. A layer 3 switch can do all the intervlan routing and many times a dhcp server. Most times you use what is called a “helper” that forwards the dhcp broadcasts to a central server that can do it.

Why do we use Layer 3 switches?

Why use a Layer 3 switch? Layer 3 switches make the use of virtual local area networks (VLANs) and interVLAN routing easier and faster. They make VLANs easier to configure because a separate router isn’t required between each VLAN; all the routing can be done right on the switch.

What is computer network layer?

1) In computer programming, layering is the organization of programming into separate functional components that interact in some sequential and hierarchical way, with each layer usually having an interface only to the layer above it and the layer below it. Communication programs are often layered.

What does LAN stand for?

A local area network (LAN) consists of a series of computers linked together to form a network in a circumscribed location. The computers in a LAN connect to each other via TCP/IP ethernet or Wi-Fi.

Is hub a Layer 3 device?

The link layer is specific to the medium over which the packet is traveling. The Ethernet and Mac Address are part of this layer. A router resides in the Network Layer of the OSI model i.e., the third layer. A hub is located in the Physical Layer of the OSI model i.e., the first layer.

Is switch faster than router?

Routers operate at Layer 3 (Network) of the OSI model whereas Network switches operate at layer two (Data Link Layer) of the OSI model. … In various types of network environments (MAN/ WAN), the router works faster whereas Switch is faster than a Router in a LAN environment.

Is a VLAN Layer 2 or 3?

VLANs are data link layer (OSI layer 2) constructs, analogous to Internet Protocol (IP) subnets, which are network layer (OSI layer 3) constructs.

Which is cheaper Layer 3 switch or router?

Cost— Layer 3 switches are much more cost-effective than routers for delivering high-speed inter-VLAN routing. High-performance routers are typically much more expensive than Layer 3 switches. Port density— Layer 3 switches, have much higher port count while Routers have a lower port density than Layer 3 Switches.

Is router a Layer 2?

Routing is a layer 3 function. Packet switching is a layer 2 function. If a router can packet switch as well as route, it is a layer 2 and layer 3 device. Same thing as a switch that can do routing.

Why would you use a router instead of a switch?

Just as a switch connects multiple devices to create a network, a router connects multiple switches, and their respective networks, to form an even larger network. … In addition to connecting multiple networks together, the router also allows networked devices and multiple users to access the Internet.

How do I connect UniFi to Internet?

1. Connect an Ethernet cable from your computer or host system to any port of UniFi Switch. 2. Connect Ethernet cables from the Ethernet ports of your devices to the other numbered ports of the UniFi Switch.

What is the difference between Layer 2 and Layer 3 switches?

A Layer 2 switch works with MAC addresses only and does not care about IP address or any items of higher layers. … That means, a Layer 3 switch has both MAC address table and IP routing table, and handles intra-VLAN communication and packets routing between different VLANs.

Are UniFi switches any good?

The Unifi switches are centrally controlled, but not as powerful as the EdgeMax. After I learned where to set up port profiles, they are pretty simple to maintain as well. They are both good products from my experience and I would recommend either of them. They work great!

On which data can multilayer switches make routing decisions?

Layer 3 switches make routing decisions based on the MAC and IP address, or layer 2 and 3 addressing. Access control lists (ACL) are also consulted to further refine the switching decision. All these tables are reviewed at the same time.

What is multilayer switching Cisco?

The term multilayer switching refers to the ability of a Catalyst switch to support switching and routing of packets in hardware, with optional support for Layers 4 through 7 switching in hardware as well. … Cisco Catalyst switches achieve this high rate of performance by using hardware switching.
