EIGRP is a distance vector & Link State routing protocol that uses the diffusing update algorithm (DUAL) (based on work from SRI International) to improve the efficiency of the protocol and to help prevent calculation errors when attempting to determine the best path to a remote network.

Is EIGRP a path vector?

Distance VectorLink-stateEIGRP routers only advertise the best route , not every route that is aware of.An EIGRP router forms neighbour relationships.

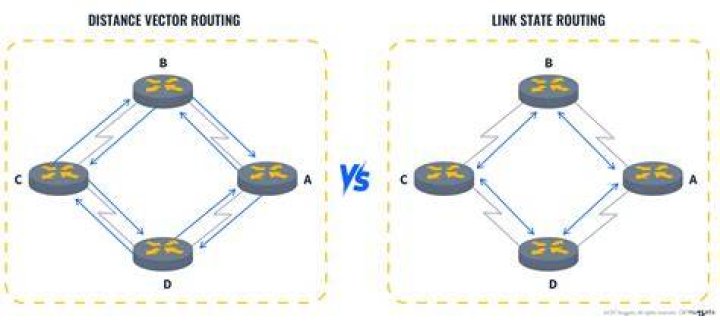

What is distance vector and link state routing?

In distance vector routing the routing share, the information of the entire autonomous system and the information is shared only with neighbours. On the other hand, in link state routing the routers share the knowledge only about their neighbours and the information is shared with all routers.

Which protocol is a distance vector routing protocol?

The distance-vector protocol designed for use in wide area networks (WANs) is the Border Gateway Protocol (BGP). BGP is an exterior gateway protocol and therefore implemented on border and exterior routers on the Internet.

What is difference between EIGRP and OSPF?

Key Differences Between EIGRP and OSPF. EIGRP is an advanced distance vector routing protocol which uses incremental and triggered updates. … On the other hand, OSPF is a link-state routing protocol which resembles a map where the complete information about all the routes within that area is maintained.

What is administrative distance of EIGRP?

Routing protocolAdministrative distanceExternal BGP20Internal EIGRP90IGRP100OSPF110

Is EIGRP a link state protocol?

Technical details. EIGRP is a distance vector & Link State routing protocol that uses the diffusing update algorithm (DUAL) (based on work from SRI International) to improve the efficiency of the protocol and to help prevent calculation errors when attempting to determine the best path to a remote network.

What are two popular examples of distance vector routing protocols?

are two very popular Distance Vector routing protocols. You can find links to more information on these protocols at the bottom of the page.

Are distance vector routing protocols similar to link state routing protocols?

How are distance vector routing protocols similar to link-state routing protocols? (Select two.) The distance vector routing protocol RIP and the link-state routing protocol OSPF and both are interior gateway protocols. The trustworthiness of both types of routing protocols is rated by an administrative distance.

Which of the following are considered distance vector protocols?

EIGRP/BGP; RIP and RIPv2 are distance vector routing protocols.

Article first time published on

Is distance a vector protocol?

A simple routing protocol that uses distance or hop count as its primary metric for determining the best forwarding path. RIP, IGRP and EIGRP are examples. A distance vector protocol routinely sends its neighboring routers copies of its routing tables to keep them up-to-date.

Which is a link state routing protocol?

Examples of link-state routing protocols include Open Shortest Path First (OSPF) and Intermediate System to Intermediate System (IS-IS). The link-state protocol is performed by every switching node in the network (i.e., nodes that are prepared to forward packets; in the Internet, these are called routers).

Which is better link state or distance vector?

Additionally, link state convergence occurs faster than distance vector convergence. This is because link state establishes a neighbor relationship with directly connected peers and shares routing information with its neighbors only when there are changes in the network topology.

What type of protocol is Eigrp?

What type of protocol is Enhanced Interior Gateway Routing Protocol? EIGRP is an enhanced distance vector protocol that evolved from Cisco’s IGRP.

Which routing protocol is better Eigrp or OSPF?

Both of them could be widely deployed in Internet Protocol (IP) networks for data communication. EIGRP is a popular choice for routing within small and big campus networks. While OSPF is the best choice when your network hardware devices come from various vendors.

What is an advantage of using Eigrp?

Benefits of EIGRP It makes use of link more effectively through (ECMP) Equal-Cost Multi-Path and unequal cost load sharing. It performs a much easier transition with a multi-address family. It supports both IPV4 and IPV6 networks. It provides encryption for security and can be used with iBGP for WAN routing.

Why EIGRP is called Advanced distance vector?

There is no doubt that it is a Distance Vector protocol, because it records only the distance to destinations – not the path (as OSPF and ISIS do). … So the most correct way to describe EIGRP is indeed as an Advanced Distance Vector Routing Protocol.

What type of routing updates are sent in EIGRP protocol?

EIGRP unicasts update packets to newly discovered neighbors; otherwise, it multicasts update packets to 224.0. 0.10 when a link or metric changes. Update packets are acknowledged to ensure reliable transmission.

Why is EIGRP referred to as a hybrid routing protocol?

EIGRP is called a hybrid protocol because is uses metrics from both distance vector protocols and link state protocols. Configuration of EIGRP on a Cisco router is similar to enabling other routing processes. All that needs to be done to start EIGRP on a Cisco router is to define an EIGRP routing process.

What is distance vector routing algorithm?

Distance vector routing is an asynchronous algorithm in which node x sends the copy of its distance vector to all its neighbors. When node x receives the new distance vector from one of its neighboring vector, v, it saves the distance vector of v and uses the Bellman-Ford equation to update its own distance vector.

Which protocol is considered a hybrid protocol?

Enhanced Interior Gateway Routing Protocol (EIGRP) is considered as a Hybrid Routing Protocol because EIGRP has characteristics of both Distance Vector and Link State Routing Protocols.

How does a distance vector routing protocol differ from a link state routing protocol quizlet?

The main difference between the distance vector and the link state methods are that with the distance vector method, every router shares its entire routing table with its neighbors at every update interval. … The link state routing protocol shares routing paths via relative link cost for the metric.

Is OSPF a distance vector protocol?

OSPF is not a distance-vector protocol like RIP, but a link-state protocol with a set of metrics that can be used to reflect much more about a network than just the number of routers encountered between source and destination. In OSPF, a router attempts to route based on the “state of the links.”

Which of the following are examples of distance vector routing protocols?

• Routing Information Protocol (RIP) for IP.
• Xerox Networking System’s XNS RIP.
• Novell’s IPX RIP.
• Cisco’s Internet Gateway Routing Protocol (IGRP)
• DEC’s DNA Phase IV.
• AppleTalk’s Routing Table Maintenance Protocol (RTMP)

Which protocol is a link-state dynamic routing protocol quizlet?

OSPF (Open Shortest Path First)is a link-state routing protocol used for routing within an AS. OSPF uses relative link cost for the metric. OSPF is a classless protocol. OSPF divides a large network into areas.

Is RIPv2 a link-state routing protocol?

The classful routing protocols, RIPv1 and IGRP, are legacy protocols and are only used in older networks. These routing protocols have evolved into the classless routing protocols, RIPv2 and EIGRP, respectively. Link-state routing protocols are classless by nature.

Is distance scalar or vector?

Distance is a scalar quantity that refers to “how much ground an object has covered” during its motion. Displacement is a vector quantity that refers to “how far out of place an object is”; it is the object’s overall change in position.

Which of the following is true of distance vector routing protocols?

Which two of the following are true regarding the distance-vector and link-state routing protocols? Link state sends its complete routing table out all active interfaces on periodic time intervals. Distance vector sends its complete routing table out all active interfaces on periodic time intervals.

What is a distance vector in networking?

The term distance vector refers to the fact that the protocol manipulates vectors (arrays) of distances to other nodes in the network. The distance vector algorithm was the original ARPANET routing algorithm and was implemented more widely in local area networks with the Routing Information Protocol (RIP).

What are two characteristics of link state routing protocols?

Link state protocols use characteristics of the route such as speed and cost as well as current congestion to determine the best path, which is typically computed by the Dijkstra algorithm. Link state routers are updated from all the routers in the entire network by passing information from router to nearest router.

Is the path vector routing algorithm closer to the distance vector routing algorithm or to the link state routing algorithm?

The path-vector routing algorithm is actually distance-vector routing using the best path instead of the shortest distance as the metric. Each node first creates a forwarding table, assuming it can only reach immediate neighbours.
