Asynchronous transfer mode (ATM) is a switching technique used by telecommunication networks that uses asynchronous time-division multiplexing to encode data into small, fixed-sized cells. This is different from Ethernet or internet, which use variable packet sizes for data or frames.

Does ATM use virtual circuit?

ATM is a “virtual circuit” based: the path is reserved before transmission. While Internet Protocol (IP) is connectionless and end-to-end resource reservations are not possible. RSVP is a new signaling protocol on the internet. ATM Cells: Fixed or small size and Tradeoff is between voice or data.

What is ATM switching?

ATM switches are high-speed packet switches specialized to process and forward ATM cells (packets). Since ATM is a connection-oriented protocol, ATM switches must establish a virtual connection from one of its input ports to an output port before forwarding incoming ATM cells along that virtual connection.

What type of network is ATM?

ATM standard defines two types of ATM connections: virtual path connections (VPCs), which contain virtual channel connections (VCCs) as shown in Fig. 4.6. 6. A virtual channel connection (or virtual circuit) is the basic unit, which carries a single stream of cells, in order, from user to user.

Why ATM is called asynchronous?

Asynchronous, in the context of ATM, means that sources are not limited to sending data during a set time slot, which is the case with circuit switching, used in the old standby T1. ATM transmits data not in bits or frames, but in packets. … In short, data is sent asynchronously and cells are sent synchronously.

Is ATM network still used?

It is still used a bit, but most providers are phasing it out.

What is an ATM circuit?

ATM provides functionality that uses features of circuit switching and packet switching networks. It uses asynchronous time-division multiplexing. … ATM uses a connection-oriented model in which a virtual circuit must be established between two endpoints before the data exchange begins.

What are two types of ATM switches?

ATM switch uses two types of switches viz. VP switch and VP-VC sitch. Typically, switches connected to users are VPI/VCI switches while all intermediate switches are only VPI switches All VPIs and VCIs field have local significance across particular link.

Where is ATM network used?

Asynchronous Transfer Mode (ATM) can be used as the underlying technology for Fiber Distributed Data Interface (FDDI), Synchronous Optical Network (SONET), and other high-speed networks. Plus, ATM can run on any media including coax, twisted-pair, or fiber-optic.

What is ATM network management?

ATM stands for Asynchronous Transfer Mode. It is a switching technique that uses time division multiplexing (TDM) for data communications. ATM networks are connection oriented networks for cell relay that supports voice, video and data communications.

Article first time published on

What are ATM cells?

A cell is the basic data unit of the ATM (Asynchronous Transfer Mode) protocol. Cells contain identifiers known as VCI (Virtual Channel Identifier) and VPI (Virtual Path Identifier) to associate the cells with a logical data stream. Each cell consists of a 5 byte header and 48 bytes of payload.

How do ATM transactions work?

When you need money from an ATM machine, you insert your credit or debit card into the ATM and enter a pin number assigned to you by your bank via the keypad. … In short, an ATM machine is a computer with a mechanical dispenser for cash that is connected to an ATM transaction processor through the internet or phone line.

Is ATM a distributed system?

Asynchronous Transfer Mode (ATM) is one of the most widely-accepted and emerging high-speed network standards which can potentially satisfy the communication needs of distributed network computing. … Each API represents distributed programming at a different communication protocol layer.

How routing and switching is done in ATM networks?

In the case of ATM networks, the routing decision is made for the first cell in a flow and a connection is established. Then the rest of the cells in the flow are sent via simple switches that forward the cells simply based on their Virtual Connection Identifier (VCI) and Virtual Path Identifier (VPI).

How much Internet does an ATM use?

The performance of ATM is often expressed in the form of OC (Optical Carrier) levels, written as OC-xxx. Performance levels as high as 10 Gbps (OC-192) are technically feasible with ATM. However, more common for ATM is 155 Mbps (OC-3) and 622 Mbps (OC-12).

Which one is better ATM or IP?

It is important to understand that both protocols are best effort services only, although ATM assumes links are highly reliable and have very low rates of cell loss and cell corruption, while IP makes no such assumption.

What is the difference between Ethernet and ATM?

The difference between ATM and Gigabit Ethernet in the delivery of QoS is that ATM is connection-oriented, whereas Ethernet is connectionless. With ATM, QoS is requested via signaling before communication can begin.

Is ATM a WAN?

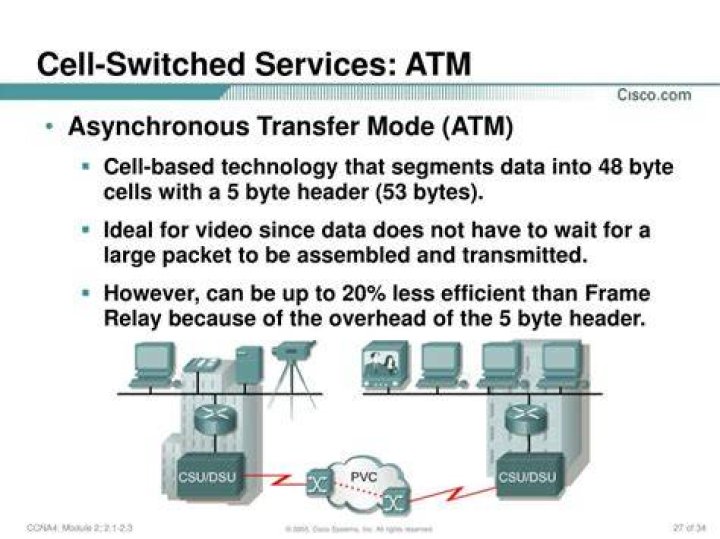

Asynchronous Transfer Mode (ATM) is a WAN technology that uses fixed length cells. ATM cells are 53 bytes long, with a 5-byte header and 48-byte data portion. ATM allows reliable network throughput compared to Ethernet. … In contrast, all ATM cells are 53 bytes.

What are the three types of switching methods?

There are three types of switching methods: the store-and-forward method, the fragment-free method, and the cut-through method.

What is Layer 2 switching in networking?

A layer 2 switch is a type of network switch or device that works on the data link layer (OSI Layer 2) and utilizes MAC Address to determine the path through where the frames are to be forwarded. It uses hardware based switching techniques to connect and transmit data in a local area network (LAN).

How does an ATM communicate with the bank?

Like any other data terminal, the ATM has to connect to, and communicate through, a host processor. The host processor is analogous to an Internet service provider (ISP) in that it is the gateway through which all the various ATM networks become available to the cardholder (the person wanting the cash).

Who owns ATMs?

The three main parties in every ATM business are the ATM owner, the venue owner and the ATM processor. The ATM owner (“you”) are the one that’s buying the machine and placing it at a specific venue or place. The venue owner is the person you’ve contacted and negotiated with to place your ATM machine.

Who puts money in ATM?

Who loads the cash in the machine? As the owner of the ATM machine you are responsible for loading cash in the machine or having a 3rd party load cash into the machine. This cash is also paid back on a daily basis as customers pull cash from the ATM and deposited back into a bank account of your choosing.
