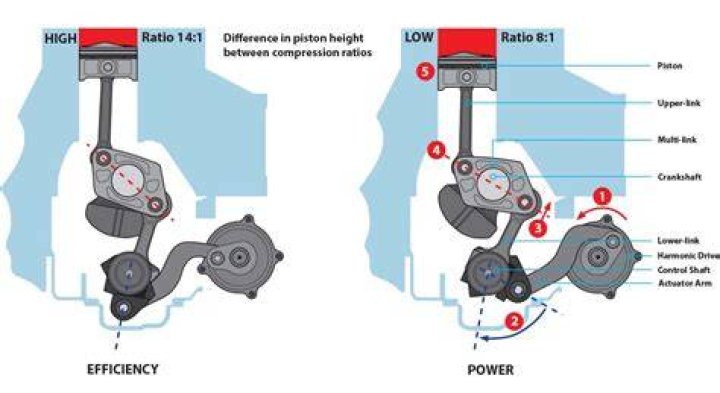

A VC-Turbo engine uses a multi-link system in place of a traditional connecting rod to rotate the crankshaft, and an actuator motor changes the multi-link system endpoint in order to vary the pistons’ reach to transform the compression ratio.

What is variable compression Turbo?

The VC-T engine (for “variable compression, turbocharged”) can adjust its compression ratio between 8:1 and 14:1 on the fly, offering high-compression efficiency under light loads and the low compression needed for turbocharged power under hard acceleration.

How does Infiniti variable compression engine work?

2019 Infiniti QX50. Infiniti’s VC-Turbo is a turbocharged 2.0-liter inline-four that can operate at a very high compression ratio without knocking, thanks to the variable compression. … Sensors integrated in the upper engine mounts detect vibrations from the VC-Turbo, then creates opposing vibrations to cancel them out.

How does variable compression work?

Variable compression engines allow the volume above the piston at top dead centre to be changed. Higher loads require lower ratios to increase power, while lower loads need higher ratios to increase efficiency, i.e. to lower fuel consumption.

Who makes variable compression engines?

INFINITI WORLD’S FIRST TECHNOLOGY THE REVOLUTIONARY VC-TURBO. More than 20 years in the making, INFINITI’s ground-breaking new VC-Turbo is the world’s first production variable compression ratio engine.

What compression ratio is good for Turbo?

Today, the average high-performance street or strip turbocharged four-cylinder race engine sports a compression ratio of 9.5:1, with some even running compression ratios as high as 11.5:1 or more on alcohol or E85. Modern technology allows our racing generation to get the best of both worlds.

Does higher compression mean more power?

A higher compression ratio — say, from 12:1 to 14:1 — means higher combustion efficiency. Higher compression ratios and combustion efficiency mean more power with less fuel, and fewer exhaust gases.

What is meant by turbo lag?

Turbo lag is the time between mashing the throttle and feeling the rush of torque from a turbocharged engine. … A turbo that’s small enough to make a significant amount of boost under low-rpm situations would overspeed and possibly explode as soon as full throttle was hit.

What is the lowest compression ratio available from the variable compression Turbo engine?

The VC-Turbo can operate with a compression ratio as low as 8:1 for maximum performance or as high as 14:1 for maximum efficiency.

What is the advantage of variable compression ratio concept in IC engines How can you change the compression ratio of an IC engine?

With a variable compression ratio, the peak cylinder pressure increase can be mitigated by reducing compression ratio at full load. This can lead to improved full load efficiency and/or increased performance levels.

Article first time published on

How does a turbocharger improve performance?

The objective of a turbocharger is to improve an engine’s efficiency by increasing the density of the intake gas (usually air), thereby allowing more power per engine cycle. The turbocharger’s compressor draws in ambient air and compresses it before it enters into the intake manifold at increased pressure.

What is Infiniti VC-Turbo engine?

INFINITI’s VC-Turbo engine is the world’s first production-ready variable compression ratio engine – and it makes its production debut on the new QX50. … It combines the power of a 2.0-liter turbocharged gasoline engine with the torque and efficiency of an advanced four-cylinder diesel engine.

How does variable displacement engine work?

Variable displacement is an automobile engine technology that allows the engine displacement to change, usually by deactivating cylinders, for improved fuel economy. The technology is primarily used in large, multi-cylinder engines.

What is the benefit of 2022 qx55's variable compression turbo engine?

The fastback style gives the car a sportier look, while luxe interiors put your comfort front and center. The Variable Compression Turbo (VC Turbo) engine adds more power to the impressive 2.0L four-cylinder configuration, and the Intelligent all-wheel drive (AWD) delivers more control to your trips.

What is Nissan variable compression engine?

Nissan created the world’s first variable compression turbo engine and you can get it now at Nissan of Cool Springs in the 2019 Nissan Altima. The engine is an inline four-cylinder 2.0-liter engine that has the same performance as many V6 engines but with the fuel economy of a four-cylinder engine.

What is the benefit of 2021 QX50's variable compression turbo engine?

As the standout feature of the 2021 INFINITI QX50, VC-Turbo Engine strikes the perfect balance between performance and efficiency. Being the world’s first engine of its kind, the 268-hp 2.0-liter engine needs only a moment to turn up the power for faster drives and reel it back for better fuel economy.

Why is high compression bad for Turbo?

Turbo engines run lower static compression ratios to increase the amount of power they can reliable generate on pump gas. Increasing the static compression ratio greatly increases the temperature of the air:fuel mixture. The increased mixture temps increase the chances of detonation as well as pre-ignition.

What octane is needed for 11 1 compression?

95 Octane. Gasoline with this octane number is known in Indonesia under the brands Pertamax Plus (produced by Pertamina), Super Extra (produced by Shell), and Primax (produced by Petronas). This type of gasoline is advisable for car engines with compression ratios of 11:1 to 12:1.

What octane do you use for 10 1 compression?

Most stock gas engines have a compression ratio around 10:1 and run just fine on regular 87-octane gas.

How much HP will 5 psi add?

Engines make hp based on how much air and fuel they can run through them, and how much energy can be extracted from each pound of air that runs through the engine. So 5psi would be about 33% increase in power, 10psi would be 66% increase, 15psi would be 100%.

What happens if compression ratio is too high?

(1) With high compression ratio, they operate at higher pressures and offer a cleaner and complete burn of fuel leading to better mileages too. However, it’s not ALL good. The higher pressure requires stronger build of the engine (in some cases heavier). Chances of knocking in the engine are higher.

Is high or low compression better for Turbo?

High compression is good for diesels, catastrophic for gasoline engines because of its volatility. So in order to eliminate that possibility, turbo engines are built with lower compression to avoid overheating the air fuel mixture before the spark plug fires.

Is higher compression ratio better?

A higher compression ratio (CR) is beneficial for engines. That’s because the higher ratio allows for an engine to extract more energy from the combustion process due to better thermal efficiency. Higher compression ratios allow the same combustion temperatures to be achieved with less fuel.

How do I lower my compression ratio?

A thicker gasket will reduce the compression ratio by a small fraction, probably only by . 1 or . 2. This is by far the easiest method of reducing compression but the risk is that you are more prone to head gasket failure and the gains in lower compression are minimal.

How can I increase the compression ratio of my engine?

1. By changing the flat-top pistons to high compression ones that curve upward to result in a higher compression ratio. However, since the air and fuel are both more highly compressed, there will be more heat. …
2. Turbocharging. …
3. Supercharging.

At what RPM does turbo kick in?

The turbine in the turbocharger spins at speeds of up to 150,000 revolutions per minute, which is 30 times faster than most car engines can go. The turbine’s temperatures are very high since it is hooked up to the exhaust.

At what RPM is turbo activated?

From 1-2,400 rpm, the primary turbocharger is activated; at 2,400-2,800 rpm, the second turbocharger is activated; and beyond 2,800 rpm, both turbochargers function. This system is recommended for diesel engines with displacements of 2.0 liters and above, and V engines.

Why do diesel engines have higher compression ratios?

Diesel engines use higher compression ratios than petrol engines, because the lack of a spark plug means that the compression ratio must increase the temperature of the air in the cylinder sufficiently to ignite the diesel using compression ignition.

What is the minimum compression ratio for diesel?

Diesel will generally ignite with compression ratios of between 15 and 20 to 1. Increased thermal efficiency comes from the higher compression ratio.

What is the compression ratio of IC engine?

The compression ratio is defined as the ratio between the volume of the cylinder with the piston in the bottom position, Vbottom (largest volume), and in the top position, Vtop (smallest volume). The higher this ratio, the greater will be the power output from a given engine. It is generally in the 6–10 range.

How does a turbocharger increase power?

It uses the exhaust gas to drive a turbine. This spins an air compressor that pushes extra air (and oxygen) into the cylinders, allowing them to burn more fuel each second. That’s why a turbocharged car can produce more power (which is another way of saying “more energy per second”).
