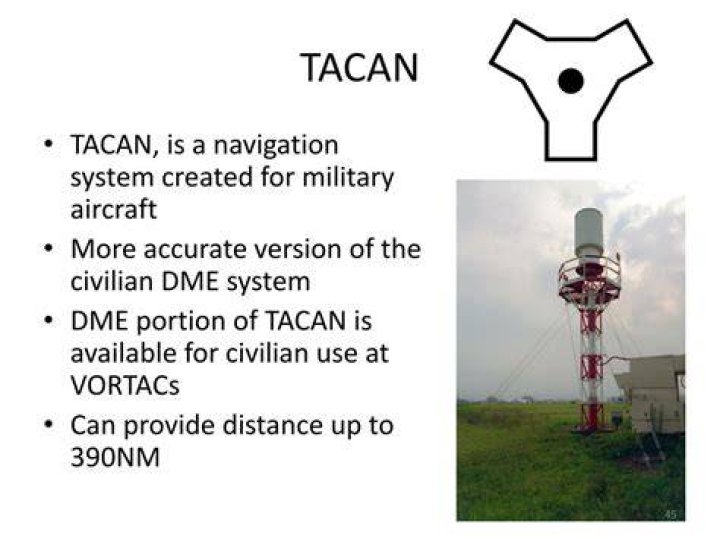

The TACAN periodically transmits its identification call sign in Morse code to enable aircraft to determine which ground station they are using. Distance reply signals are transmitted upon request. TACAN receives an interrogation code from an aircraft, delays it and retransmits the same code back to the aircraft.

What is difference between TACAN and VOR?

VOR stands for VHF Omnidirectional Range. It is a navigation beacon intended for civil use and provides a user with a radial to/from the station. It works on frequencies between 108.00 and 117.95 MHz. TACAN stands for TACtical Air Navigation, a military system that is similar to VOR but with higher accuracy.

Can we use TACAN?

Military use the two last signals (TACAN) and the VOR as a backup if they are equipped, which is normally the case. Pure TACAN have only the UHF bearing determination signal and the DME signal. Their little size, compared to a VOR-DME, allow them to be used on ships.

What is the difference between DME and TACAN?

DME and TACAN are pulse-ranging navigation systems that operate in the 960-1 215 MHz frequency band. DME systems provide distance measurement for aircraft, TACAN, a military navigation system, provides both azimuth and distance information.

How many TACAN channels are there?

TACAN operates in the UHF (1000 MHz) band with 126 two-way channels in the operational mode (X or Y) for 252 total.

Can you hold over a TACAN?

TACAN‐only aircraft can never be held overhead the NAVAID, be it TACAN or VORTAC.

Is TACAN line of sight?

Description. A TACAN is a short range, UHF, line-of-sight air navigation system that provides continuous, accurate slant-range distance and bearing information. … The TACAN station theoretically produces an infinite number of signals similar to the spokes of a wheel.

What is a TACAN azimuth?

This is a polar-coordinate type radio air navigation system that provided military aircrafts with distance information, from distance measuring equipment (DME), and bearing (azimuth) information from a ground or ship-borne station. TACAN was the military version of the VOR/DME system.

Can civilians use TACAN?

The DME portion of the TACAN system is available for civil use; at VORTAC facilities where a VOR is combined with a TACAN, civil aircraft can receive VOR/DME readings. Aircraft equipped with TACAN avionics can use this system for en route navigation as well as non-precision approaches to landing fields.

Is a TACAN a precision approach?

A precision approach uses a navigation system that provides course and glidepath guidance. … Each procedure chart uses a specific type of electronic navigation system such as an NDB, TACAN, VOR, ILS/MLS and RNAV.

Article first time published on

What is the difference between VOR and Dvor?

There are two types of VOR aids: CVOR (Conventional VOR) and DVOR (Doppler VOR). DVOR is the further development of the CVOR, providing improved signal quality and accuracy compared to CVOR at demanding locations, where the geographical conditions are difficult, using the Doppler effect.

What is a VOR TACAN?

A VORTAC is a radio-based navigational aid for aircraft pilots consisting of a co-located VHF omnidirectional range (VOR) beacon and a tactical air navigation system (TACAN) beacon.

What is a VOR beacon?

In radio navigation, a VOR/DME is a radio beacon that combines a VHF omnidirectional range (VOR) with a distance measuring equipment (DME). The VOR allows the receiver to measure its bearing to or from the beacon, while the DME provides the slant distance between the receiver and the station.

Is ILS VHF or UHF?

The localizer broadcast is a VHF broadcast in the lower range of the VOR frequencies (108 MHz–111.95 MHz) on odd frequencies only.

What is VHF range?

VHF includes radio waves from 30 MHz to 300 MHz. VHF waves must not exceed the local radio horizon of 100 miles. VHF frequencies are less likely to be interrupted by atmospheric noise, issues with electrical equipment, and other interferences.

What is an ILS channel?

The instrument landing system (ILS) is a highly directional guidance system with horizontal and vertical guidance components (called a localiser and a glideslope) that provides precision guidance down a glide path (typically from 20nm or less distance) to the runway.

Does a Vortac have DME?

A VORTAC is a facility consisting of two components, VOR and TACAN, which provides three individual services: VOR azimuth, TACAN azimuth and TACAN distance (DME) at one site.

What does RNAV mean in aviation?

Area navigation (RNAV) is a method of navigation that permits aircraft operation on any desired flight path within the coverage of ground- or space-based navigation aids, or within the limits of the capability of self-contained aids, or a combination of these.

Is VOR being phased out?

The VORs will be closed in two phases: one running through 2020, and the second from 2021 to 2025. “The FAA remains committed to the plan to retain an optimized network of VOR NAVAIDs,” the agency said.

What is the difference between DA and MDA?

Yet, decision altitude (DA) and minimum descent altitude (MDA) are very different concepts. As the names suggest, DA is a decision point while MDA is the lowest altitude allowed without visuals. … Without required flight visibility and runway environment, 91.175 says we can’t go below MDA.

What is an LPV approach?

Localiser Performance with Vertical Guidance (LPV) is defined as an Approach with Vertical Guidance (APV); that is, an instrument approach based on a navigation system that is not required to meet the precision approach standards of ICAO Annex 10 but that provides both course and glidepath deviation information.

What is VOR A approach?

What is a VOR Approach? A VOR Approach is a non-precision approach providing lateral guidance only. The Final Approach Course (as published on the relevant approach chart) utilizes a radial from the VOR to provide this lateral guidance.

Why is Dvor more accurate?

Doppler VOR beacons are inherently more accurate than conventional VORs because they are less affected by reflections from hills and buildings. The variable signal in a DVOR is the 30 Hz FM signal; in a CVOR it is the 30 Hz AM signal.

Why it is called Doppler VOR?

A VOR (very high frequency omnidirectional radio-range), which by using Doppler principles reduces the errors in bearings caused by the reflection of RF (radio frequency) energy from objects near the ground.

How does and ILS localizer and glideslope work?

The glideslope works the same as a localizer, but just turned on its side. The equipment still transmits 90 Hz and 150 Hz lobes, which are interpreted by the ILS receiver. The beam is 1.4 degrees thick, with . … A typical glideslope will take the airplane down towards the runway at a 3 degree angle.

How many Vortacs are there?

Included in the list of VORs to be decommissioned are 12 VORs, 155 VOR/DMEs, and 141 vortacs. The majority are located in the eastern and central regions of the United States. In the case of VOR/DMEs and vortacs, the DME and TACAN portions of the units will be left in place to facilitate RNAV requirements.

Are NDBs still used?

NDBs are rare, but still part of a well-rounded pilot’s training. … Now, to nearly everyone’s gratitude, most NDB approaches have been decommissioned—and replaced by much more accurate, simpler RNAV GPS-based procedures.

What is WAAS aviation?

The Wide Area Augmentation System (WAAS) provides extremely accurate navigation capability by augmenting the Global Positioning System (GPS). It was developed for civil aviation by the Federal Aviation Administration (FAA) and covers most of the U.S. National Airspace System (NAS) as well as parts of Canada and Mexico.
