Distribution lines typically operate at less than one-fifth of their design pressure. As gas flows through the system, regulators control the flow from higher to lower pressures. If a regulator senses that the pressure has dropped below a set point it will open accordingly to allow more gas to flow.

How does gas move through pipeline?

Natural gas is moved through pipelines as a result of a series of compressors creating pressure differen- tials – the gas flows from an area of high pressure to an area of relatively lower pressure.

How deep are gas mains buried?

On average, main gas lines are usually found at least 24 inches deep, while service lines are usually 18 inches deep.

Are natural gas pipelines above ground?

Pipelines transport a variety of products such as sewage and water. However, the most common products transported are for energy purposes, which include natural gas, biofuels, and liquid petroleum. … While some pipelines are built above ground, the majority of pipelines in the U.S. are buried underground.

How does natural gas infrastructure work?

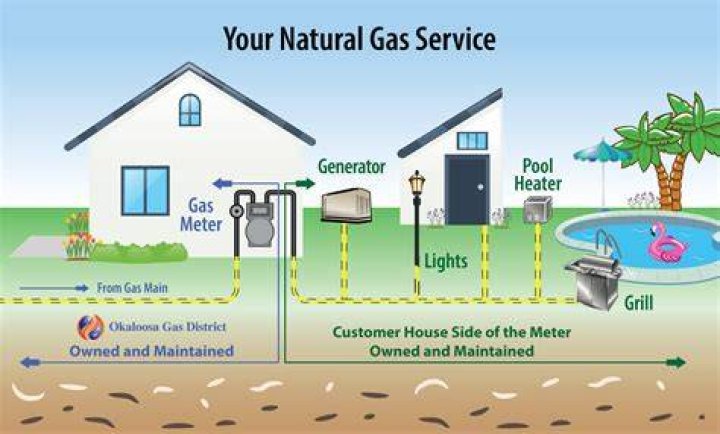

When natural gas arrives at the locations where it will be used (usually through large pipelines), it flows into smaller diameter pipelines called mains and then into smaller service lines that go directly to homes or buildings.

How deep are high pressure gas lines buried?

These trenches are typically five to six feet deep, as the regulations require the pipe to be at least 30 inches below the surface. In certain areas, however, including road crossings and bodies of water, the pipe is buried even deeper.

How can the gas be turned into a liquid?

The easy answer is to lower the surrounding temperature. When the temperature drops, energy will be transferred out of your gas atoms into the colder environment. When you reach the temperature of the condensation point, you become a liquid.

What is the pressure in a natural gas line?

The natural gas pressure of the gas line leading to the home ranges from approximately 1/4 psi to 60 psi, depending on the number of homes or businesses served by the line. This compares to pressures of up to 1,500 psi for large-volume pipelines used to move the gas from the well fields to the local utilities.

What is the temperature of natural gas in a pipeline?

The range of pressure and temperature conditions is characteristic for natural gas industry (i.e. 0.1–25 MPa, −20–90 degrC, which corresponds to the reduced pressure and temperature ranges 0.02–5.5 and 1.3–1.9, respectively.)

Can you run water and gas lines in the same trench?

If trench is to be a joint trench (shared with other utilities) the following separations must be maintained: 24 inches between gas and electric lines. 12 inches between water and electric lines.

Article first time published on

Can a gas pipe be run externally?

There is no problem with running a gas pipe externally its a perfectly acceptable practice.

How do you know if you hit a gas line?

1. Move away from the site.
2. Extinguish any flames, including cigarettes.
3. Immediately call your utility company’s emergency number or 911.

Is natural gas a liquid in pipelines?

Oil pipelines are made from steel or plastic tubes which are usually buried. The oil is moved through the pipelines by pump stations along the pipeline. Natural gas (and similar gaseous fuels) are pressurized into liquids known as Natural Gas Liquids (NGLs).

Can natural gas be transported by truck?

CNG is safer than gasoline and diesel because it is nontoxic and disperses quickly. Transportation – After exiting the ground or extracted from a biodigester, natural gas is transported by pipeline or by virtual pipeline via tanker truck where it is compressed and stored at 3,600 pounds per square inch (PSI).

How fast does natural gas flow in a pipeline?

A maximum gas velocity of 100 feet per second (30.5 meters per second) to minimize noise and erosion. The specific gravity of the natural gas should be considered as higher specific gravity will result in higher pressure drops or lower pipe carrying capacity at a given pressure drop.

At what temperature does a gas turn into a liquid?

What is the temperature when a gas turns into a liquid? At the atmospheric pressure of 1 atm, this phase transition occurs at 100o C (the normal boiling point of water). Liquid water becomes water vapor or steam when it enters the gaseous phase.

How does a gas become a solid?

Deposition is the phase transition in which gas transforms into solid without passing through the liquid phase. Deposition is a thermodynamic process. The reverse of deposition is sublimation and hence sometimes deposition is called desublimation.

Can plasma turn into a solid?

you can not have solid plasmas. Plasmas are hot and when you cool them they will lose their charge.

What happens when water gets in a gas line?

Since water is heavier than gasoline, when it gets into the tank, it will settle at the bottom. … As a result, this can slowly cause rust on the pipes, injectors or hoses because water flows through these parts and oxidizes them.

Can a gas line leak water?

Homes that use natural gas in any capacity run the risk of encountering a leak. Sometimes, these leaks are subtle and difficult to detect. Other times, these leaks are noticeable by a wide range of signals—most distinctly their smells.

How do you get moisture out of a gas line?

Pass natural gas into a heat exchanger to lower the temperature of the gas. Move the heated gas into a low temperature separator. As the gas rapidly cools, water vapor will form into solid ice crystals and drop out of the natural gas.

How close can you build to a gas pipeline?

The answer to the first question is straightforward: There is no limitation on how close gas pipelines can be built to homes. The federal regulations say nothing about any minimum distance away from homes that pipeline installation must occur.

Who owns the most natural gas pipelines?

Nearly 82% of large-diameter pipeline miles and 62% of all pipeline miles in the United States are owned by 10 companies. Kinder Morgan Inc., with 32,000 miles of large-diameter pipeline, has more than double the mileage of TransCanada Corp., which acquired Columbia Pipeline Group in July 2015.

Why is natural gas difficult transport?

Natural gas is easy to transport over land in pipelines, but difficult to transport over oceans due to its low density and thus large volume. Increasingly, countries are importing and exporting natural gas in a liquefied form.

What is PNG in gas?

LPG is Liquefied Petroleum Gas and PNG is Piped Natural Gas. LPG is supplied in liquid form just as the name suggests in cylinders whereas PNG is supplied through a pipeline. LPG is used as a fuel in heating appliances and vehicles, where as PNG is used for cooking (gas stoves) and heating water (gas geysers).

Can natural gas freeze in pipes?

Gas, as it is delivered to the typical home, is too dry to cause any concern about it freezing. … A pipe containing natural gas would have to get extremely cold to freeze – actually about 296.7° degrees Fahrenheit – and would need to be struck with a sledgehammer before there would be any possibility of it breaking.

Which country has the greatest natural gas reserves?

Russia has the largest proved natural gas reserves in the world.

What happens if gas pressure is too high?

Improper gas pressure, on the side of the gas train can cause the unit to over heat if it is too high. … Likewise, too much on the inlet side of the valve will cause gas valve failures or no heat because the valve cannot open against “high pressures”.

What makes the smell in natural gas?

Natural gas has no odor. Gas companies add a harmless chemical called mercaptan to give it its distinctive “rotten egg” smell.

How fast does Gasoline travel in a pipeline?

Many pipelines operate at a maximum liquid velocity of around 10 feet per second or a bit over six miles per hour.

Can you bury an electrical line with a gas line?

Run a 6/3 ground wire to a 60 ampere, 240 volts subpanel. Dig a trench 1-2 feet deep for the electrical wires. The gas pipes need to be 1-1.5 feet deep. A good depth for both pipes is 18 inches.
