Simple looms A loom is any machine or device that holds the threads and helps you weave them. You stretch out one set of threads, the “warp”, parallel on the loom. Another thread, the “weft”, goes over and under the warp threads, back and forth, again and again, to create the woven fabric.

What did the Jacquard machine do?

The Jacquard machine (French: [ʒakaʁ]) is a device fitted to a loom that simplifies the process of manufacturing textiles with such complex patterns as brocade, damask and matelassé. The resulting ensemble of the loom and Jacquard machine is then called a Jacquard loom.

How did loom punch cards work?

The loom is controlled by a system of stiff punch cards and hooks. Each row of holes punched in the cards corresponds to one row of thread in the design. When the hooks align with one of the punched holes, they are able able to pass through the hole with a thread, thus creating the required stitch to form the pattern.

What is Jacquard Loom concept?

Invented by Joseph Jacquard and demonstrated in 1801, the Jacquard Loom is an attachment for powered fabric looms. It uses a chain of punch cards to instruct the loom on how to make intricate textiles. … This digital version is used to create instructions for the loom to make a textile version of the scan.

Who invented Jacquard loom?

Jacquard loom The Jacquard system was developed in 1804–05 by Joseph-Marie Jacquard (q.v.) of France, but it soon spread elsewhere. His system improved on the punched-card technology of Jacques de Vaucanson’s loom (1745).

How does an automated loom work?

Automatically replenished flat, or automatic, looms are the most important class of modern loom, available for a very wide range of fabrics. In virtually all such looms, the shuttle is replenished by automatically replacing the exhausted bobbin with a full one.

How did the first loom work?

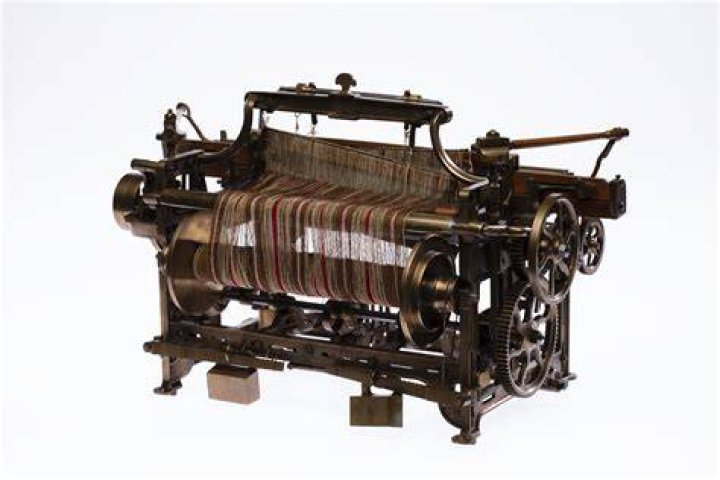

In 1785 Edmund Cartwright patented a power loom. which used water power to speed up the weaving process, the predecessor to the modern power loom. His ideas were licensed first by Grimshaw of Manchester who built a small steam-powered weaving factory in Manchester in 1790, but the factory burnt down.

Who made the loom?

built and patented a power loom in 1785, and it was this that was adopted by the nascent cotton industry in England. The silk loom made by Jacques Vaucanson in 1745 operated on the same principles but was not developed further.

Where was the Jacquard loom invented?

The Jacquard system was developed in France in 1804-05 by Joseph-Marie Jacquard, improving on the original punched-card design of Jacques de Vaucanson’s loom of 1745.

Who invented punch card?

Herman Hollerith invented and developed a punch-card tabulation machine system that revolutionized statistical computation.

Article first time published on

What is the name of the thing that controls the Jacquard loom?

The Jacquard Loom is controlled by a chain of multiple cards punched with holes that determine which cords of the fabric warp should be raised for each pass of the shuttle. The ability to store and automatically reproduce complex operations found wide application in textile manufacturing.

When was Jacquard loom invented?

A revolutionary invention When Joseph-Marie Jacquard, a French weaver and merchant, patented his invention in 1804, he revolutionised how patterned cloth could be woven.

Is the Jacquard loom programmable?

The Jacquard loom used programmable cards and went on to influence Charles Babbages work so the loom is considered an important step towards modern computing. Jacquard was born on July 7th 1752 and worked on his loom in the early 1800s. This portrait of Jacquard was actually woven on one of his looms.

How old is the loom?

loom, machine for weaving cloth. The earliest looms date from the 5th millennium bc and consisted of bars or beams fixed in place to form a frame to hold a number of parallel threads in two sets, alternating with each other.

How was weaving discovered?

The tradition of weaving traces back to Neolithic times – approximately 12,000 years ago. … Weaving can be done by hand or by using machines. Machines used for weaving are called looms. Loom originated from crude wooden frame and gradually transformed into the modern sophisticated electronic weaving machine.

Where did the loom come from?

The loom threads across the globe from China to Colombia, and dates back to as early as Ancient Egypt in 4400 BC. Through centuries, the loom evolved to be the titan of all fabric creation. By 700 AD, horizontal and vertical looms were found in Asia, Africa, and Europe.

What is Jacquard woven?

Simply put, jacquard is a specially woven fabric created using a Jacquard loom and various materials such as cotton, polyester, silk and acrylic can be woven to create them. Some of these fabrics even feature a raised pattern, such as a Matelassé or a brocade.

How did the analytical machine work?

The Analytical Engine It was programmable using punched cards, an idea borrowed from the Jacquard loom used for weaving complex patterns in textiles. The Engine had a ‘Store’ where numbers and intermediate results could be held, and a separate ‘Mill’ where the arithmetic processing was performed.

What is backstrap loom?

The backstrap loom, an example of which is shown to the right, is deceptively simple. For the most part, it consists of sticks, rope, and a strap that is worn around the weaver’s waist. … Using the backstrap loom, a weaver can produce fabric with a plain weave. Most simply, this is an over-under-over-under pattern.

How were threads passed from one side of the loom to the other?

The filling yarn emerges through a hole in the shuttle as it moves across the loom. A single crossing of the shuttle from one side of the loom to the other is known as a pick. … Between the heddles and the take up roll, the warp threads pass through another frame called the reed (which resembles a comb).

What is modern loom?

In weaving technology, modern looms means shuttle less loom. … Shedding is the raising of the warp yarns to form a loop through which the filling yarn, carried by shuttle, can be inserted. The shed is the vertical space between the raised and unraised warp yarns.

Who is known as the father of computers?

Charles Babbage: “The Father of Computing”

Who invented the Do Not Fold spindle or mutilate card?

Do Not Fold, Spindle or Mutilate Coined by Charles A. Phillips, it became a motto for the post-World War II era (even though many people had no idea what spindle meant), and was widely mocked and satirized. Some 1960s students at Berkeley wore buttons saying: “Do not fold, spindle or mutilate.

Who invented Mcq punchcard?

Herman Hollerith was an American inventor who developed an electromechanical punched card tabulator to assist in summarizing information and, later, accounting.

Who helped Babbage in his work?

In the spring of 1812 he fell into a group of like-minded students and formed an organization known as the Analytical Society. The leader of this group was John Herschel, son of the astronomer William Herschel. For the rest of Babbage’s life Herschel would be his best friend and closest confidant.
