Door Specifications2/0 (24″) (Single)26″82-1/2″2/4 (28″) (Single)30″82-1/2″2/6 (30″) (Single)32″82-1/2″2/8 (32″) (Single)34″82-1/2″

How are door sizes written?

Door measurements are often written on the door schedule in a four digit format, for example 2068. This would indicate a door 2 feet, zero inches wide by 6 feet 8 inches tall.

How wide is a 3 0 door?

A: Doors are measured in feet and inches as follows: a standard 36″ wide x 80″ height x 1-3/4″ thick door is called a 3/0 (“three oh”, which means 3 feet, 0 inches) x 6/8 (“six eight”, which means 6 feet, 8 inches) x 1-3/4″.

What are standard door sizes?

TypeHeightWidthStandard Door80”36”Standard Exterior Door80”36”Sliding Glass Door Sizes80”60” – 72”French Door Sizes80”36”

What is a 2.0 door?

The nomenclature of doors is as follows: the width is specified by 2 or 3 numbers that indicate the feet and inches of the door a 2-0 [written 20] is 2′-0″ wide or 24″ wide, a 2-6 [written 26] is 2′-6″ wide or 30″ wide, a 2-10 [written 210] is 2′-10″ wide or 34″ wide.

How do you read door sizes?

Door Schedule For example a door may have a size of 2868 – the number alternates between feet and inches, first number is feet, second is inches, third is feet again and the last is inches. That makes that number 2′ 8″ x 6′ 8″. The first set of numbers, 2′ 8″ is the width, the second set, 6′ 8″ is the height.

What does a 2 4 door mean?

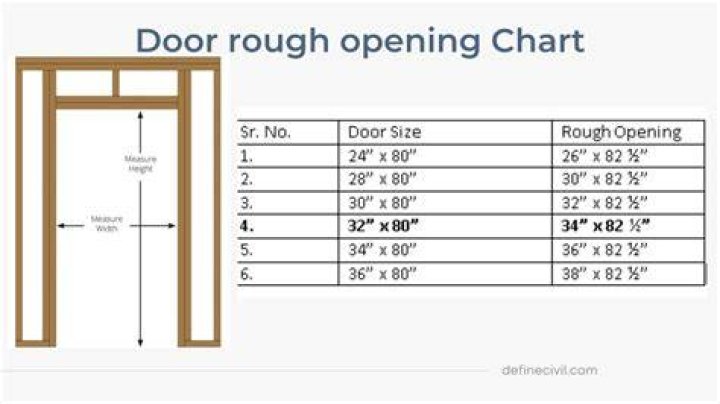

2/4 door = 2/6 R.O. 2/6 door = 2/8 R.O. 3/0 door = 3/2 R.O. * Note: All R.O. widths are 2″ wider and 2-1/2″ taller (82 1/2″) high.

What is a 2/8 interior door?

Standard Sizes Door widths which are considered standard usually come in sizes of 2/6 (30”), 2/8 (32”) and 3/0 (36”). Standard door heights are 6/6 (78”) and 6/8 (80”). In addition, special sizes can sometimes be custom ordered.

What is the standard door size in the Philippines?

Under the Philippine building code BP 344 in regards to the minimum requirements for accessibility, the recommended size of an egress doorway opening should not be less than a width of 900mm and a height of 2100mm.

What sizes do interior doors come in?

Standard widths include 18, 20, 24, 28, 30, 32 and 36 inches. Standard heights include 80, 84 and 96 inches. Customized sizes are available in a wide range of different designs. To measure a prehung door, remove the interior casing and measure the opening.

Article first time published on

What size exterior door do I need?

Door size. Measure the width and height of your old door. Round these up to full inches to find the size of the replacement door you’ll need. If, for example, your door measures 35-3/4 in. wide and 79-1/2 in.

How wide is a door in Ft?

HEIGHT & WIDTHMetric (mm)Imperial (inches)Imperial (feet & inches)2032 x 81380″ x 32″6′8″ x 2′8″2134 x 91584″ x 36″7′0″ x 3′0″2040 x 52680 1⁄4″ x 20 11⁄16″6′8 1⁄4″ x 1′8 11⁄16″

Is a 32 inch door actual 32 inches?

No, the door frame will be 32 inches. The door itself will be about one eighth to one quarter of an inch narrower to allow space for opening and closing it. Doors are sized to order — in the United States of America. Therefore a 32″ door is 32″ wide.

What do you call a 36 inch door?

Entry doors are usually 36 inches wide. Most entry doors are slightly thicker than interior doors as well, with a standard thickness is 1¾ inches.

What is a 2 6 door?

In the building trades, a 30-inch door is called a “2-6” door, meaning 2 feet, 6 inches wide, or 30 inches. … The 30-inch door is based on one of the most widely sold dimensions in doors and is typically associated with a standard height of 6 feet, 8 inches.

What size is a 2480 door?

So a 2480 is 24″ wide by 80″ high.

What size is an 8 0 door?

Wood Door Sizes5’4″ x 8’0″ Tiffany Pre-hung Double Door66-1/2″ x 98-1/2″ Radius = 63-7/8″67″ x 99″ Radius = 64-3/8″6’0″ x 8’0″ Tiffany Pre-hung Double Door74-1/2″ x 98-1/2″ Radius = 63-7/8″75″ x 99″ Radius = 64-3/8″

What does nominal door size mean?

Nominal Door size is essentially the frame opening or frame size. … The exact size of the door is undersized to suit the nominal width and height of the frame. Keeping with the example size noted above, the exact door size would be 35-3/4” x 83-1/8” with a nominal size or frame size of 36” x 84”.

What's the average size of a backdoor?

Because of this international standard, new builds usually feature a standard external door width of 36 inches (3ft) and a height of 80 inches (6.6ft). These will fit a rough structural opening of 38 inches by 82.5 inches.

How much smaller should a door be than the opening?

Check the door fit. Ideally, there should be a gap of about 1/8 inch at the top and along each side, and about 3/8 inch at the bottom. Use cardboard spacers or folded matchbooks (four thicknesses equals about 1/16 inch) along with shims underneath to maintain the spacing.

What size is a bedroom door?

The Standard Bedroom Door Height And Width But, if we talk about one standard size, then the width of the door can be anywhere between 24 inches, 28 inches up to 32 inches. The height of the door is 80 inches usually. So that even a person with a tall height can pass through easily without having to stoop.

What is a standard door size in CM?

HEIGHT & WIDTHMetric (mm)Imperial (inches)Imperial (feet & inches)1981 x 68678″ x 27″6′6″ x 2′3″1981 x 71178″ x 28″6′6″ x 2′4″1981 x 76278″ x 30″6′6″ x 2′6″

Which doors are best for bathroom?

Aluminium doors are the best for bathrooms. Although wooden doors and steel doors look quite elegant and great, they are not as practical as their aluminium counterparts.

What size is a 6068 door?

OXXO60685’11-1/4″ x 6’8-1/8″606880687’11-1/4″ x 6’8-1/8″8068100689’11-1/4″ x 6’8-1/8″10068XOOOOX

What size door do I need for a 32 inch opening?

Rough Opening WidthRough Opening HeightDoor Size to Order29.75″ – 31″81.5″ – 83″28″31.75″ – 33″81.5″ – 83″30″33.75″ – 35″81.5″ – 83″32″35.75″ – 37″ 37.75″-39″81.5″ – 83″34″ 36″

How wide are double doors?

There is no standard width for double doors. However, the most common widths for interior double doors measure at: 60” 64”

What is standard door jamb width?

Even without measuring you can do the math: Most framing studs are 3 1/2 inches in wide, with 1/2-inch-thick drywall on both sides, for a total thickness of 4 1/2 inches. It’s a common practice to add another 1/8 inch for some leeway, to ensure the jamb covers adequately, making the average door jamb 4 5/8 inches wide.

What are metric door sizes?

Metric door sizes are extremely specific and different from imperial feet and inches. The door sizes have exact heights of 2040mm and widths vary as follows, 526mm, 626mm, 726mm, 826mm and lastly 926mm all with door thicknesses of 40mm but 44mm for 30 minute fire rated doors.

What is standard door size UK?

What is the standard UK door width? As we said above, there is no standard door size in the UK. BUT, the most common (standard) door width in England and Wales is 2′ 6” – 30 inches – 762mm. In Scotland, the door width is a little smaller, usually measuring 28.5 inches – 726mm.

How wide is a 32 inch door slab?

Nominal Slab SizesActual Size (approx.)RO for 8 FT30″29.5″33″ × 96″32″31.5″35″ × 96″36″35.5″39″ × 96″40″39.5″43″ × 96″
