SIP walls can bear considerable vertical and horizontal loads with reduced internal studding. The load carried by the SIP is transferred to ground by the OSB skins, held in position by the fully bonded insulation core.

Are SIP houses strong?

Repeated engineering tests show that SIP construction is stronger than a conventional wall and roof framing, and a typical SIP wall panel will withstand vertical compression of over 2,000 pounds per linear foot before structural damage occurs.

Are SIPs structural?

For most applications, SIPs are structurally self-sufficient. The structural characteristics of SIPs are similar to that of a steel I-beam. The OSB facers act as the flange of the I-beam, while the rigid foam core provides the web. This design is extremely strong and eliminates the need for additional framing.

Are SIPs panels worth it?

SIPs are definitely worth the investment. The improved indoor air quality decreased energy costs, and lower labor needs all add to the long-term value of choosing to build with SIPs. You can reduce construction on labor cost. In the long run, this would be a significant investment.

How tall can you build with SIPs?

When walls need to be taller than 8′, the direction of the panels will be turned 90° – in this scenario, there will be a spline joint at least every 8′, but the panels can be up to 24′ tall. In residential SIP construction today, 8′ x 9′ or 8′ x 10′ panels are very commonly used to achieve 9′-or 10′-tall walls.

How long will a SIPs house last?

SIPS – Lifespan: 60+ Years A Structural Insulated Panel (SIP) is a piece of thick insulation bonded in-between two sheets of oriented strand board (OSB) and is a construction method that is now used for residential and light commercial construction projects.

Do SIPs need Vapour barrier?

A SIP building would normally incorporate a vapour control layer onto the warm (inner) side of the external walls. This primarily controls the movement of moisture vapour through the wall, as well as being an effective air barrier.

Are SIPs panels fire resistant?

SIP construction can be designed to meet Class O surface spread of flame and up to 60 minutes fire resistance.

Can SIPs be used as flooring?

Floor SIPs are very easy to install. They go down fast, provide superior strength and excellent insulation. … Because SIP panels provide a continuous bond between the OSB and EPS, SIP floors will keep your living space warmer in the winter and cooler in the summer.

Is it cheaper to build with SIPs?

According to Seward: Although life cycle costs were not part of this study, it should be noted that SIPs installed to meet Energy Star requirements offer significant savings in energy use. … When all the factors are considered, building with SIPs is virtually the same or even less expensive than other building systems.

Article first time published on

Do SIPs off gas?

SIPs do not contain any VOCs or other harmful chemicals that can affect occupant health. The components used to make SIPs (foam, oriented strand board, and adhesive) meet some of the most stringent standards for indoor air quality. … The foam cores have no off-gassing.

Are SIPs cheaper than stick framing?

SIPs versus Stick Framing: Building with SIPs Costs Less in Long Term. … While SIPs may cost more initially, SIP construction provides benefits that impact the entire cost of ownership for the life of the structure. Ultimately, SIP panel construction will save more than your increased initial investment in the panels.

Do SIPs need foundations?

What foundation should be used? Any construction can be used but the tolerance to level must be +/- 5mm to ensure the most efficient erection of the SIPs panels.

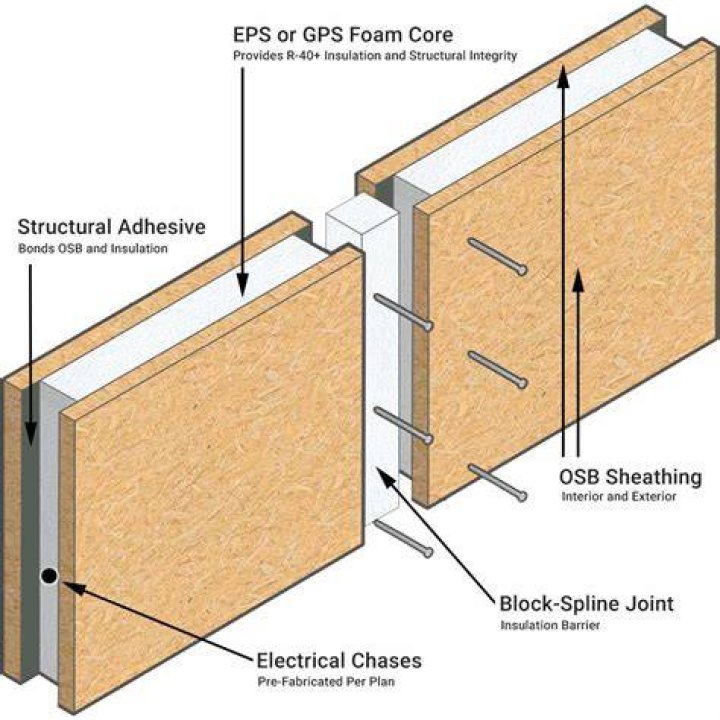

How are SIPs panels joined together?

SBS Structural Insulated Panels are joined together with an insulated SIP spline providing a continuous polyurethane (PUR) core through the walls and roof of the building.

How long does it take to build a SIP house?

SIP builds can be completed within 7 days The manufacturing process for the panels, will normally take around 12 days for a build of a single house. When using SIP panels, build speeds are quicker than traditional construction methods due to the number of elements needed for a build, being reduced.

How far can sip roof panels span?

And because SIP roof panels can be manufactured to span up to 24 feet long and stretch 8 feet wide, designers are granted unencumbered architectural opportunities thanks to the reduction of necessary rafter-and-joist components.

How thick is a SIPs panel?

High performance structural insulated panels The Kingspan TEK Building System comprises 142 mm or 172 mm thick structural insulated panels (SIPs) with a high performance fibre-free rigid urethane insulation core, sandwiched between two layers of Oriented Strand Board type 3 (OSB/3).

Are SIPs soundproof?

SIPs buildings are a great starting point Thanks to the structural make-up of our buildings they perform extremely well in terms of sound absorption and sound proofing. The layered structure and differing densities of each SIP panel, (which form the walls ceilings and floors), block out a wide a spectrum of noise.

How do you mount a TV on SIP wall?

Cut out the drywall to the size of your board, use at least 3/4″ solid wood or plywood, and attach directly to the OSB with construction adhesive and screws equal to the board + the OSB thickness. Let the adhesive cure before mounting the TV, with lag bolts. … sent from inside my SIP house.

Can SIPs panels get wet?

SIPs & THE WEATHER: SIPs panels should not be allowed to get wet during construction because if water gets into the panels the moisture has no way to escape from the composite structure. This can build-in the problem of mould.

Can you get a mortgage on a SIPs house?

Can I get a mortgage on a SIPs home? Yes. SIP houses are fully mortgageable.

How much do sips cost?

PANEL THICKNESS inchesR-VALUEPRICE per SQFT4.62516$8.416.524$9.128.2532$9.89

How much do SIP Panels Cost Canada?

An approximate installed cost for the 8-1/4” SIP wall, including lumber, sealants, and labor is $6.40 per square foot; a 10-1/4” EPS SIP wall of the same area would cost approximately $7.40 per square foot (LeRoy 2009).

Are SIPs expensive?

SIPs Are Too Expensive to Use in Building While the upfront cost of SIPs may be more expensive than other materials, the overall cost of a structural insulated panel is low. … Calculate the upfront costs but be sure to factor in the savings you’ll get! This method works for commercial and residential projects.

Are SIPs panels safe?

However, when using the right materials (such as EPS) SIP panels can be one of the safest construction methods for fire resistance, with relatively clean combustion and a high fire-resistant threshold.

How much do SIP panels cost per square foot?

How Much Do SIPs Panels Cost? Panels are purchased by the square foot in sizes ranging from 4×8 to 8×24. The cost per square foot can vary between $5 to $7 and depends on the thickness of the panel, leading to a higher R-value.

What is the R value of insulated metal panels?

What is the R value of insulated metal panels? The R-value of insulated metal panels depend entirely on the insulated foam core used. PUR is typically 5-7.1 per inch, while PIR is typically in the 7-7.2 per inch range.

What are SIP panels made of?

Structural insulated panels (SIPs) are a high-performance building system for residential and light commercial construction. The panels consist of an insulating foam core sandwiched between two structural facings, typically oriented strand board (OSB).

Do SIP panels have studs?

Do Thermocore SIPs have studs? Although Thermocore SIPs do not use studs, they’re designed with the same construction principles found in steel I-beams, making them two to three times stronger than today’s stick built walls.

What does SIP mean in building?

Structurally-insulated panels, or ‘SIPs,’ are commonly used throughout Europe and North America as a construction method. The UK market has been slow to catch up, but SIPs have many advantages over standard masonry and timber frame construction methods.

Can you use SIPS for an extension?

A SIP is a ‘structural insulated panel’ that can be used to build new homes, for roofs and to add extensions to existing builds. … SIP’s can be used over the more conventional brick, blocks, or timber frame and there are many benefits of having a SIP extension or roof.
